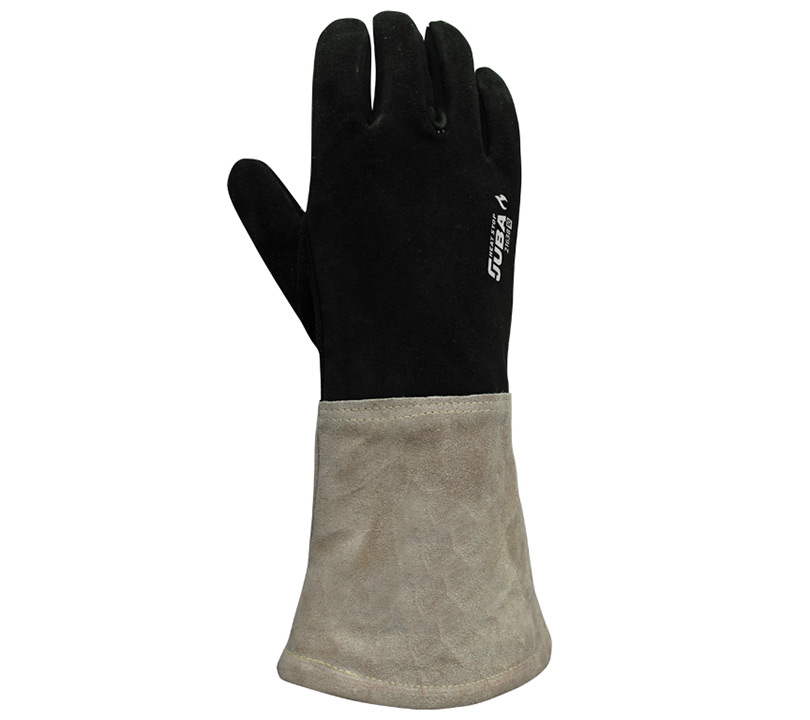

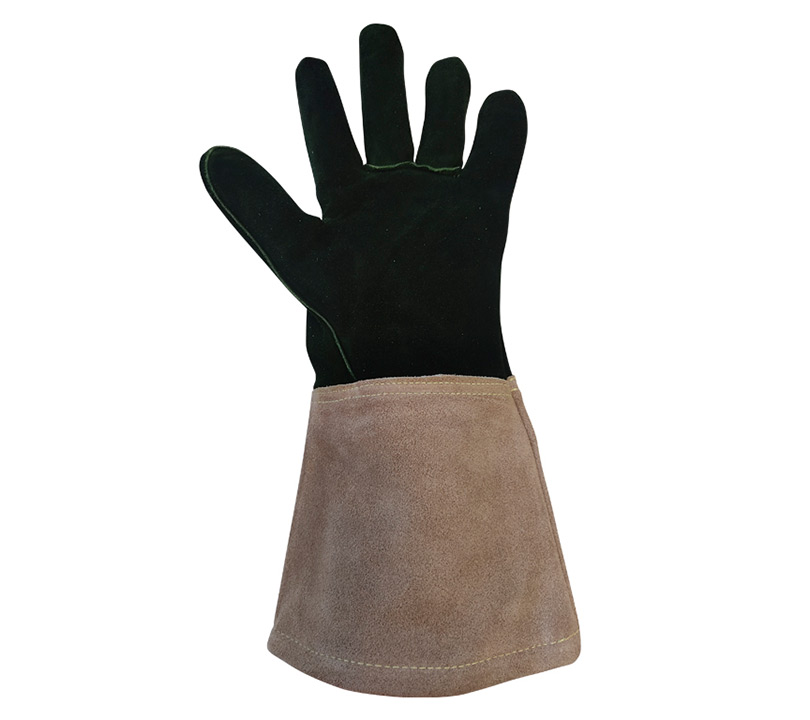

Glove Juba - 21638 HEAT STOP

Name: 21638
Brand: Juba

Fire resistant split leather glove. Fully lined

Normative

Requirements and test methods for welder's gloves. It classifies them into two types:

Type A general welder gloves.
Type B tact welder gloves. High desterity TIG welding case.

Warnings

At the moment there is no test method to determine the penetration of UV radiation through the materials from which the glove is made.
When gloves are intended for arc welding: These gloves do not provide protection against electric shock caused by faulty equipment or live work, and electrical resistance is reduced if the gloves are damp, dirty, or sweat-wet, which could increase the risk.

PROPERTY	MINIMUM REQUIREMENTS
PROPERTY	STANDARD NUMBER EN	TYPE A	TYPE B
Abrasion resistance	EN 388	2 (500 cycles)	1 (100 cycles)
Blade cut resistance	EN 388	1 (index 1,2)	1 (index 1,2)
Tear resistance	EN 388	2 (25 N)	1 (10 N)
Puncture resistance	EN 388	2 (60 N)	1 (20 N)
Fire behavior	EN 407	3	2
Contact heat resistance	EN 407	1 (contact temperature 100ºC)	1 (contact temperature 100ºC)
Convective heat resistance	EN 407	2 (HTI ≥ 7)	-
Resistance to small molten metal splashes	EN 407	3 (25 drops)	2 (15 drops)
Desterity	prEN420:1998	1 (diameter less than 11 mm)	4 (diameter less than 6,5 mm)

	MINIMUM GLOVE LENGTH
SIZE	6	7	8	9	10	11
LENGTH	300mm	310mm	320mm	330mm	340mm	350mm

3244X

EN388:2016 Protective gloves against mechanical risks.
The EN388: 2003 standard is renamed EN388: 2016, the year of its revision. The reason for the modification is given by the discrepancies in the results between laboratories in the knife cut test, COUP TEST. Materials with high levels of cut produce a dulling effect on the circular blades, which undermines the result.

The new regulation was published in November 2016 and the previous one is from the year 2003. During these 13 years, there has been a great innovation in the materials for the manufacture of cutting gloves, they have forced to introduce changes in the tests to be able to measure with more rigorous levels of protection.

pictograma 388 pictograma 388A1

A - Abrasion resistance (X, 0, 1, 2, 3, 4)
B - Blade Cut Resistance (X, 0, 1, 2, 3, 4, 5)
C - Tear resistance (X, 0, 1, 2, 3, 4)
D - Puncture resistance (X, 0, 1, 2, 3, 4)
E - Cutting by sharp objects ISO 13997 (A, B, C, D, E, F)
F - Impact test complies / does not comply (It is optional. If it complies, put P)

EN388:2016 PERFORMANCE LEVELS	1	2	3	4	5
6.1 Abrasion resistance (Cycles)	100	500	2000	8000	-
6.2 Blade cut resistance (Index)	1,2	2,5	5	10	20
6.4 Tear resistance (Newtons)	10	25	50	75	-
6.5 Puncture resistance (Newtons)	20	60	100	150	-

ENISO13997:1999 PERFORMANCE LEVELS	A	B	C	D	E	F
6.3 TDM: Cut resistance (Newtons)	2	5	10	15	22	30

41334X

Ratified by the Spanish Standardisation Association in June 2020.

Main changes:

Extension of the scope of the standard to domestic use: oven mitts/gloves.
Gloves that reach a level 3 or 4 of any thermal property must reach at least a level 3 in flame propagation. Otherwise, the maximum level that may be reached in the relevant thermal property shall be level 2.
Propagation limited to flame: prohibition of hole formation. Reduction of maximum post-combustion time for level 1. Change in ignition timing.
Heat by contact. Obligation to test any material coming in contact with heat.
Tear resistance. This trial is included.
Convective heat. The test is performed without reinforcement.
New pictogram, for gloves without flame protection.
A minimum length is introduced when resistance against small molten metal splashes is present.
After heat resistance tests, the samples must not suffer signs of melting or holes.

MINIMUM LENGTH OF THE TESTED GLOVES FOR E OR F
SIZE	LENGTH
5	290
6	300
7	310
8	320
9	330
10	340
11	350
12	360
13	370

A - Flame Behaviour
Changes in method and table. To perform the test, the ignition time now goes from 15 to 10" and the post-ignition time for level 1 goes from 20 to 15".

LEVEL OF PREFORMANCE	POST-INFLAMMATION TIME	POST IGNITION TIME
1	≤ 15	Not required
2	≤ 10	≤ 120
3	≤ 3	≤ 25
4	≤ 2	≤ 5

B - Heat by contact
Changes in the test method. In EN407:2004 only the palm is tested, whereas with EN407:2020 any other point that may come into contact is tested.

Contact temperature
Threshold time (S)

LEVEL OF PERFORMANCE	CONTACT TEMPERATURE	THRESHOLD TIME (S
1	100	≥ 15
2	250	≥ 15
3	350	≥ 15
4	500	≥ 15

C - Convective heat
Changes in the test method. From EN373 to ENISO9185:2007

LEVEL OF PERFORMANCE	HTI HEAT TRANSFER RATE
1	≥ 4
2	≥ 7
3	≥ 10
4	≥ 18

D - Radiant heat
There are no modifications. Internal layers must not show signs of melting or show holes.

LEVEL OF PERFORMANCE	HEAT TRANSFER RATE T₃
1	≥ 7
2	≥ 20
3	≥ 50
4	≥ 95

E - Small splashes
There are no modifications. Internal and external layers may not be melted or pierced.

LEVEL OF PERFORMANCE	NUMBER OF DROPS
1	≥ 5
2	≥ 15
3	≥ 25
4	≥ 35

F - Large splashes
Changes in the test method.

LEVEL OF PERFORMANCE	CAST IRON (G)
1	30
2	60
3	120
4	300

Materials

Leather

Colour

Green / Brown

Thickness

1.4 - 1.6 mm

Length

XL - 38 cm

Sizes

10/XL

Packaging

5 pairs/package

30 pairs/box

Characteristics

Good resistance to contact heat (100ºC for 15"), optimum performance against flames and small splashes of molten metal, good resistance to convective and radiant heat.
Polyester lining in palm.
Great abrasion resistance, increased durability.
Stitched with Kevlar thread, resistant to cuts and welding sparks.
Welding protection glove.
